5747846-2
Manufacturer:
TE Connectivity
Mfr.Part #:
5747846-2
Datasheet:
Description:

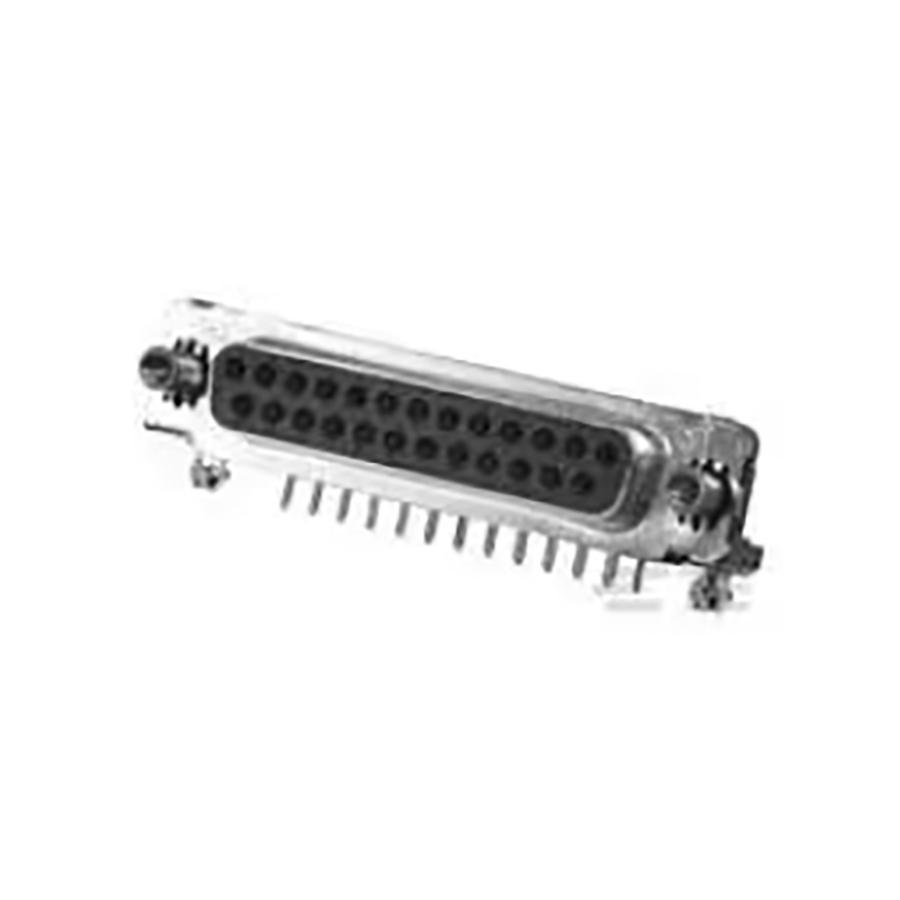

D-Sub Connectors Through Hole Receptacle, Female Sockets Number of Positions:25 Solder Female
| Parameter | Value |
|---|---|
| Length | 53 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Material | Metal |
| Packaging | Tray |
| Voltage Rating | 125 V |
| Depth | 18.8 mm |
| Lead Free | Contains Lead |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Tin, Gold |
| Lead Length | 3.175 mm |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.7686 mm |
| Type | Receptacle, Female Sockets |
| Number of Terminals | 25 |
| Current Rating | 6 A |
| Flammability Rating | UL94 V-0 |
| Approvals | UL |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Color | Black |
| Gender | Female |
| Number of Contacts | 25 |
| ELV | Compliant |
| Hole Diameter | 3.18 mm |
| Connector Type | Receptacle |
| Contact Type | Signal |
| Number of Positions | 25 |
| Number of Rows | 2 |
| Row Spacing | 2.8448 mm |
| Housing Material | Thermoplastic |
| Number of Ports | 1 |
| Housing Color | Black |
| Plating | Tin |
| PCB Mounting Orientation | Right Angle |
| PCB Thickness | 1.57 mm |
| Contact Gender | Female |
| Contact Shape | Round |
| Preloaded | Yes |
| Shell Material | Steel |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 week ago) |
| Sealable | No |
| Mating Connector Lock | Without |
| PCB Mount Retention | With |
Stock: 286
Distributors
pcbx
pcbxUnit Price$3.16067
Ext.Price$3.16067
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $3.16067 | $3.16067 |
| 10 | $2.93497 | $29.34970 |
| 25 | $2.85376 | $71.34400 |
| 50 | $2.73492 | $136.74600 |
| 100 | $2.58724 | $258.72400 |
| 300 | $2.44753 | $734.25900 |
| 500 | $2.31537 | $1157.68500 |
| 1000 | $2.19033 | $2190.33000 |
